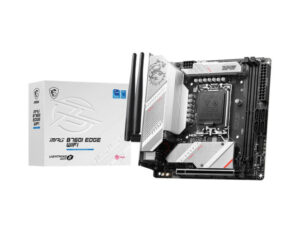

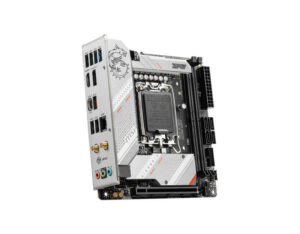

MSI MPG B760I EDGE WIFI Motherboard

The MSI MPG B760I EDGE WIFI is a compact Mini-ITX motherboard built for gamers who want style and performance in a small form factor. With support for Intel 14th/13th/12th Gen processors, DDR5 memory, PCIe 5.0, dual M.2 slots, and Wi-Fi 6E, it delivers next-gen connectivity and reliable gaming performance.

Key Features

Mini-ITX form factor with stylish silver-white design
Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® processors (LGA 1700)
2x DDR5 slots, up to 128GB, speeds up to 7200+ MHz (OC)
Direct 8+1+1 phases power design with 90A Smart Power Stage
PCIe 5.0 x16 slot with Steel Armor for high-end GPUs
Dual M.2 slots with PCIe 4.0 x4 and SATA support
Extended Heatsink, MOSFET thermal pads (7W/mK), and M.2 Shield Frozr for efficient cooling
Realtek® ALC897 Codec with 7.1-channel HD audio
Realtek® 2.5G LAN plus Intel® Wi-Fi 6E & Bluetooth® 5.3
Mystic Light RGB with extension headers

Technical Specifications

Chipset: Intel® B760
CPU Support: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®, LGA 1700
Memory: 2x DDR5, up to 128GB, 7200+ MHz (OC), Dual Channel, Intel® XMP support
Graphics Outputs: 1x HDMI™ 2.1 (4K@60Hz HDR), 1x DisplayPort 1.4 (8K@60Hz)
Expansion Slots: 1x PCIe 5.0 x16 (CPU)
Storage: 2x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6Gb/s
RAID: RAID 0/1/5/10 for SATA devices

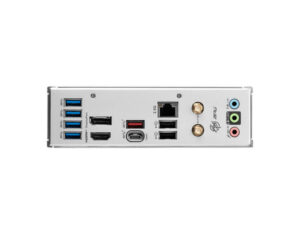

USB (Rear & Front): 2x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C
LAN: Realtek® RTL8125BG 2.5Gbps LAN
Wireless: Intel® Wi-Fi 6E, Bluetooth® 5.3
Audio: Realtek® ALC897 Codec, 7.1-channel HD Audio
Internal I/O: Multiple fan headers, RGB/ARGB connectors, TPM 2.0 header, chassis intrusion
Debug Tools: 4x EZ Debug LED
Form Factor: Mini-ITX, 170 × 170 mm
Operating System: Windows® 11 64-bit, Windows® 10 64-bit
