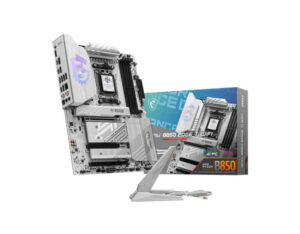

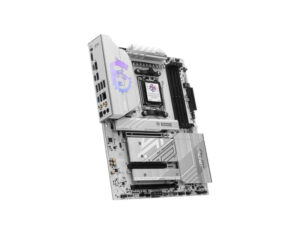

MSI MPG B850 EDGE TI WIFI (AM5) ATX Motherboard

The MSI MPG B850 EDGE TI WIFI brings a sleek silver-white aesthetic to AM5 builds while packing gamer-grade throughput: PCIe® 5.0 for GPUs and dual Gen5 M.2, Wi-Fi 7, 5G LAN, robust 14+2+1 power, and premium thermals. With EZ DIY features and diagnostic LEDs, it’s a clean, fast foundation for Ryzen™ 9000/8000/7000 rigs.

Key Features

• AMD B850 / AM5 platform with support for Ryzen™ 9000 / 8000 / 7000 Series
• PCIe 5.0 x16 for next-gen GPUs + dual PCIe 5.0 x4 M.2 (from CPU) for ultra-fast NVMe
• Networking built for low latency: Wi-Fi 7 + Realtek 5G LAN
• 14+2+1 DRPS VRM with 80A SPS, dual 8-pin CPU power, 8-layer PCB (2oz copper)
• Premium thermals: Extended heatsinks, M.2 Shield Frozr, 7W/mK pads, enlarged chipset heatsink
• EZ DIY suite: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna, EZ Debug & Digi-Debug LEDs, EZ Memory Detection LED
• DDR5 performance: OC up to 8400+ MT/s, Dual-Channel, AMD EXPO™, High-Efficiency Mode & Latency Killer (up to 12% lower memory latency*)
• Audio Boost 5 with Realtek ALC4080 for clean, immersive 7.1-channel sound

Technical Specifications

• Chipset / Socket: AMD B850 / AM5
• CPU Support: Ryzen™ 9000 / 8000 / 7000 Series
• Memory: 4× DDR5 UDIMM, up to 256GB; OC up to 8400+ MT/s; Dual-Channel; AMD EXPO; CUDIMM (clock-driver bypass)
• Power Design: 14+2+1 Duet Rail Power System, 80A SPS, dual 8-pin CPU power, 8-layer PCB (2oz copper)
• Expansion Slots:
  • PCI_E1: PCIe 5.0 x16 (Ryzen 9000/7000) / PCIe 4.0 x8 (Ryzen 8700/8600/8400) / PCIe 4.0 x4 (Ryzen 8500/8300)
  • PCI_E2: PCIe 3.0 x1 (chipset)
  • PCI_E3: PCIe 4.0 x4 (chipset) — runs x2 when M.2_3 is populated
• Graphics Output: 1× HDMI 2.1 FRL (up to 8K60*)
• Storage: 4× M.2
  • M.2_1 (CPU): up to PCIe 5.0 x4, 22110/2280
  • M.2_2 (CPU): up to PCIe 5.0 x4, 2280/2260 (PCIe 4.0 x4 on Ryzen 8700/8600/8400; x2 on 8500/8300)
  • M.2_3 (chipset): PCIe 4.0 x2, 2280/2260
  • M.2_4 (chipset): PCIe 4.0 x4, 2280/2260
  • SATA: 4× SATA 6Gb/s
  • RAID (NVMe): RAID 0/1/10**

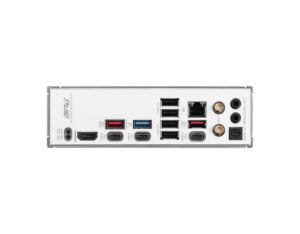

• USB (Rear): 4× USB 2.0, 1× 5Gbps Type-A, 2× 10Gbps Type-A, up to 3× 10Gbps Type-C
• USB (Front headers): 4× USB 2.0, 4× 5Gbps Type-A, 1× 20Gbps Type-C
• Networking: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
• Audio: Realtek ALC4080, 7.1-Channel USB High-Performance Audio, up to 32-bit/384 kHz (front), S/PDIF Out
• Form Factor: ATX (304.8 × 243.84 mm)
• OS Support: Windows® 11 64-bit

*Display output requires a Ryzen CPU with integrated graphics.
**RAID 10 for NVMe supported on Ryzen 9000/7000 CPUs per MSI notes.

The MPG B850 EDGE TI WIFI pairs showpiece white styling with forward-looking connectivity and cooling, ideal for high-FPS gaming builds that also need day-to-day reliability.
