MSI MPG B850I EDGE TI WIFI

White Mini-ITX AM5 Platform

This Mini-ITX board suits clean white builds. Moreover, it supports AMD Ryzen 9000, 8000, and 7000 CPUs on AM5. Therefore, you can start compact and upgrade later.

PCIe 5.0 and Gen5 NVMe Speed

You get a PCIe 5.0 x16 slot for modern GPUs. In addition, the primary M.2 slot supports PCIe 5.0 x4 for fast SSDs. Meanwhile, the second M.2 slot runs PCIe 4.0 x4 for extra storage. As a result, loading and large file work feel quicker.

Wi-Fi 7, 5G LAN, and Fast USB

Wi-Fi 7 improves throughput and lowers congestion. Likewise, 5G LAN delivers stable wired performance for competitive play. Furthermore, rear USB-C 20Gbps helps with high-speed external storage. Also, front USB-C 10Gbps keeps your cable setup cleaner.

Audio and Build-Friendly Tools

Audio uses the Realtek ALC4080 for 7.1-channel output. Additionally, S/PDIF support works well with external audio gear. Meanwhile, EZ Debug LEDs and EZ Memory Detection reduce troubleshooting time. Therefore, first boot and tuning are easier.

Key Specs

• OS: Windows® 11 64-bit
• CPU: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
• Chipset: AMD B850
• GPU: 1× PCIe x16 (PCIe 5.0 x16 from CPU; lane mode varies by CPU series)
• Display: 1× HDMI™ 2.1 (FRL), up to 8K@60Hz (iGPU required)
• Memory: 2× DDR5 UDIMM, up to 128GB; supports EXPO and A-XMP; dual-channel; non-ECC un-buffered
• Storage: 1× M.2 PCIe 5.0 x4 (2280), 1× M.2 PCIe 4.0 x4 (2280), 2× SATA 6Gbps; RAID 0/1 (SATA and M.2 NVMe)

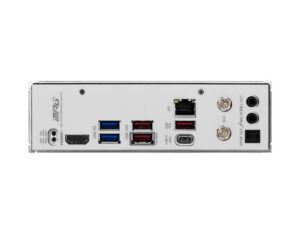

• Ports: Rear USB-C 20Gbps, multiple USB 10Gbps Type-A, USB 5Gbps Type-A, Clear CMOS, Flash BIOS, Optical S/PDIF Out
• Wireless: Wi-Fi 7, Bluetooth® 5.4; Realtek® 8126 5G LAN
• Camera/Audio: Realtek® ALC4080, 7.1-channel USB audio, S/PDIF output, up to 32-bit/384 kHz front playback
• Battery: Not applicable
• Size & Weight: Mini-ITX, 170 × 170 mm

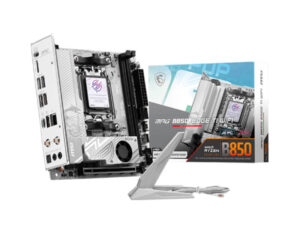

• In the Box: Motherboard and standard accessories (package contents may vary)
• Warranty: 3 Years Agent Warranty

Overall, this board targets premium compact builds. Moreover, it pairs PCIe 5.0 graphics with Gen5 NVMe support. In addition, Wi-Fi 7 and 5G LAN keep online play responsive. Furthermore, high-speed USB helps with fast external drives. Meanwhile, strong power and cooling parts support demanding Ryzen CPUs. Therefore, you can build small without limiting future upgrades. As a result, the MSI MPG B850I EDGE TI WIFI is ideal for flagship mini rigs.
