MSI MPG X870E CARBON WIFI AM5 ATX DDR5 Motherboards
$879.00
$879.00
- Chipset: AMD X870E
- CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series, Socket AM5
- Memory: 4x DDR5, up to 256GB, OC up to 8400+ MT/s, Dual Channel, AMD EXPO
- Graphics Output: HDMI 2.1 FRL (8K@60Hz), 2x USB4 Type-C with DisplayPort 1.4
- Expansion Slots: 3x PCIe (2x PCIe 5.0, 1x PCIe 4.0) with Steel Armor II
- Storage: 4x M.2 (PCIe 5.0 & 4.0), 4x SATA 6Gb/s
- RAID: Supports RAID 0/1/10 for SATA and NVMe (RAID 5 for Ryzen 9000)
- Audio: Realtek ALC4080 Codec, 7.1 HD USB Audio, 32-bit/384kHz playback, S/PDIF Out
- Networking: 5G LAN, 2.5G LAN, Wi-Fi 7, Bluetooth 5.4
- USB Ports: USB4 40Gbps Type-C, USB 20Gbps, multiple USB 10Gbps & 5Gbps
- Form Factor: ATX, 243.84 x 304.8 mm
- Cooling: Enlarged heatsink, heatpipe, Double-sided M.2 Shield Frozr, Frozr AI Cooling
- Special Features: 18+2+1 VRM Power Design, EZ PCIe Release, EZ Antenna, EZ M.2 Clip, Mystic Light RGB
- Warranty: 3 years agent warranty
Estimated delivery:5 days

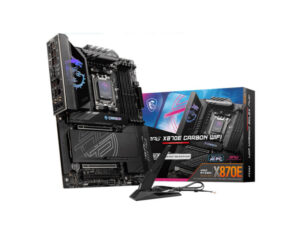

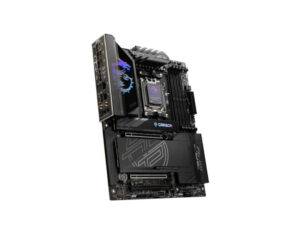

MSI MPG X870E CARBON WIFI Motherboard
The MSI MPG X870E CARBON WIFI is a premium ATX motherboard built for AMD Ryzen 9000, 8000, and 7000 processors. With support for DDR5 8400+ MHz, PCIe 5.0, Wi-Fi 7, and USB4, it’s engineered for gamers and creators seeking speed, reliability, and advanced connectivity in a stylish carbon-black design with Mystic Light RGB.
Key Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
- 4x DDR5 DIMM slots, up to 256GB, dual-channel, 8400+ MHz (OC), AMD EXPO™ support
- Advanced 18+2+1 Duet Rail Power System with 110A SPS and 8-layer PCB for stable performance
- Frozr Guard thermal solution with extended heatsinks, heat-pipe, 7W/mK pads, and double-sided M.2 Shield Frozr
- Lightning Fast Storage: 4x M.2 slots (PCIe 5.0 / 4.0) + 4x SATA 6Gb/s
- PCIe 5.0 x16 slot with Steel Armor II for heavy GPUs, PCIe supplemental power for stable GPU performance
- Networking: 5G LAN + 2.5G LAN, true Wi-Fi 7, Bluetooth® 5.4
- Ultra Connect: USB4 (40Gbps), USB 20Gbps, multiple USB 10Gbps ports
- EZ DIY suite: EZ PCIe Release, EZ Antenna, EZ M.2 Clip II, pre-installed I/O shield
- Audio Boost 5 with Realtek® ALC4080 codec for high-definition 7.1-channel audio
Technical Specifications
- Chipset: AMD X870E
- CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series, Socket AM5
- Memory: 4x DDR5, up to 256GB, speeds up to 8400+ MT/s (OC), Dual Channel, AMD EXPO™
- Expansion Slots: 3x PCIe (2x PCIe 5.0, 1x PCIe 4.0), Steel Armor II reinforced
- Storage: 4x M.2 (PCIe 5.0 / 4.0), 4x SATA 6Gb/s
- RAID: RAID 0/1/10 (SATA), RAID 0/1/10 (NVMe, Ryzen 9000/7000 only)

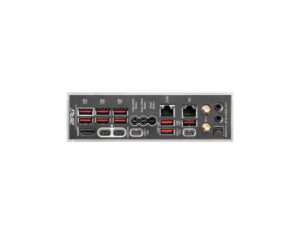

- Graphics Outputs: 1x HDMI™ 2.1 (8K@60Hz), 2x USB4 Type-C with DisplayPort 1.4 (CPU dependent)
- USB (Rear & Front): 4x USB 2.0, 4x USB 5Gbps, 9x USB 10Gbps Type-A, 3x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB4 40Gbps Type-C
- LAN: 1x Realtek® 8126 5G LAN, 1x Realtek® 8125 2.5G LAN
- Wireless: Wi-Fi 7 (802.11be), Bluetooth® 5.4
- Audio: Realtek® ALC4080 codec, 7.1-channel HD audio, 32-bit/384kHz, S/PDIF out
- Internal I/O: Multiple fan headers, ARGB/RGB headers, TPM 2.0, thermal sensor connector, EZ Conn header
- Debug Tools: EZ Debug LED, EZ DIGI-DEBUG LED
- Form Factor: ATX, 243.84 × 304.8 mm
- Operating System: Windows® 11 64-bit
The MPG X870E CARBON WIFI combines high-speed connectivity, durable power delivery, and next-gen cooling in a sleek design, making it an ideal choice for high-performance gaming and content creation PCs.
