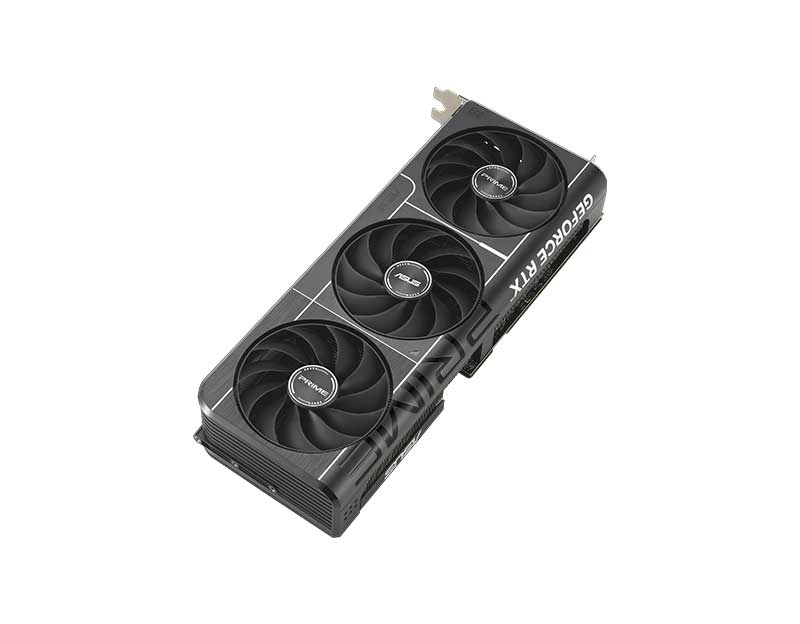

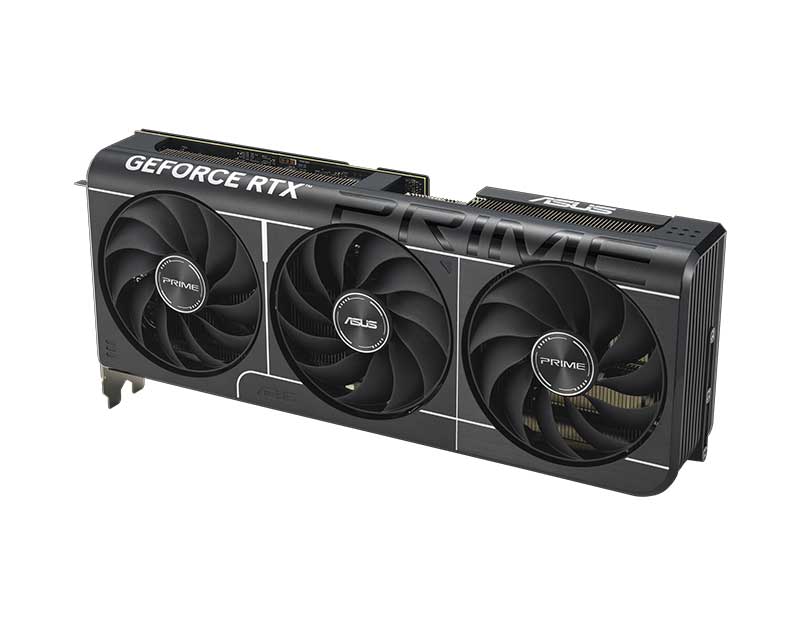

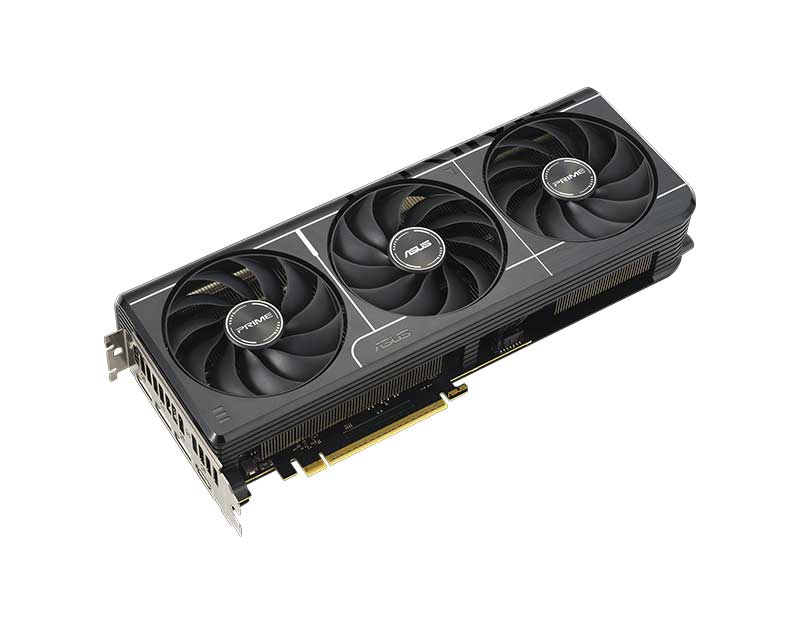

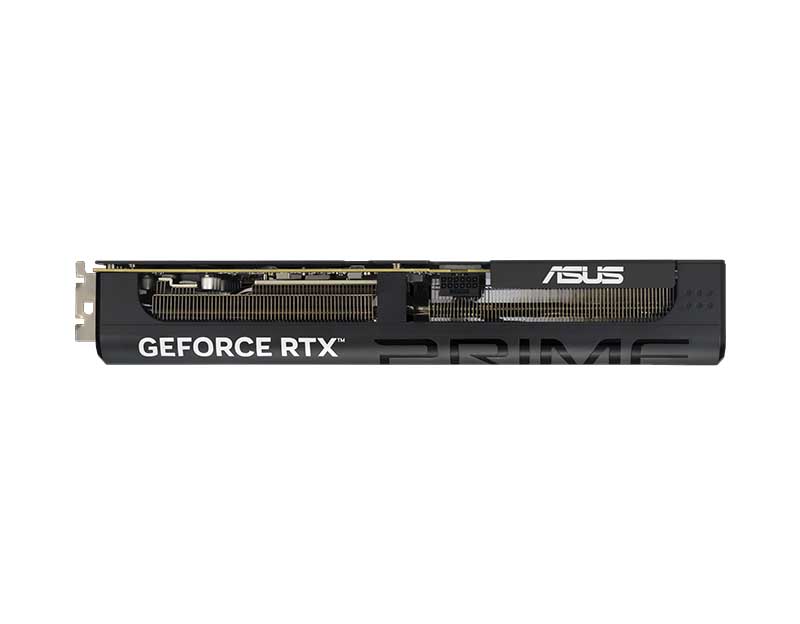

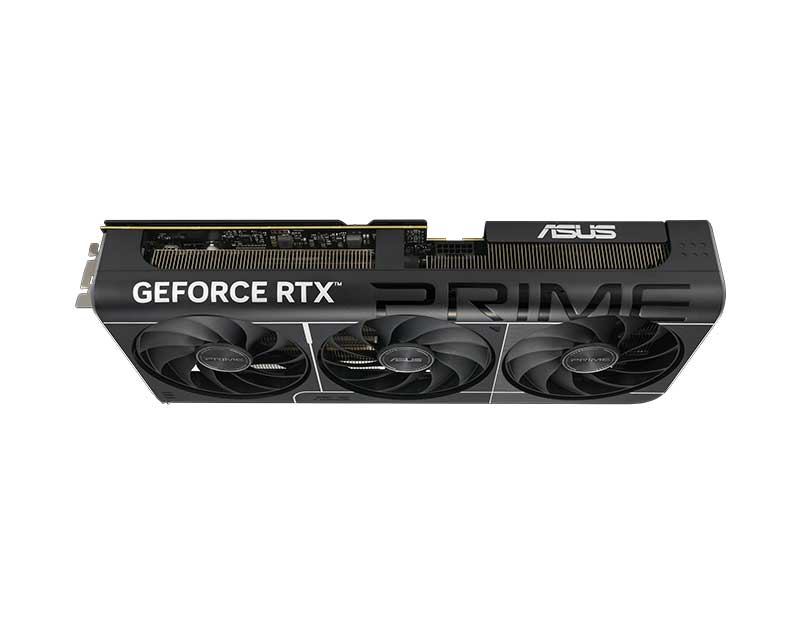

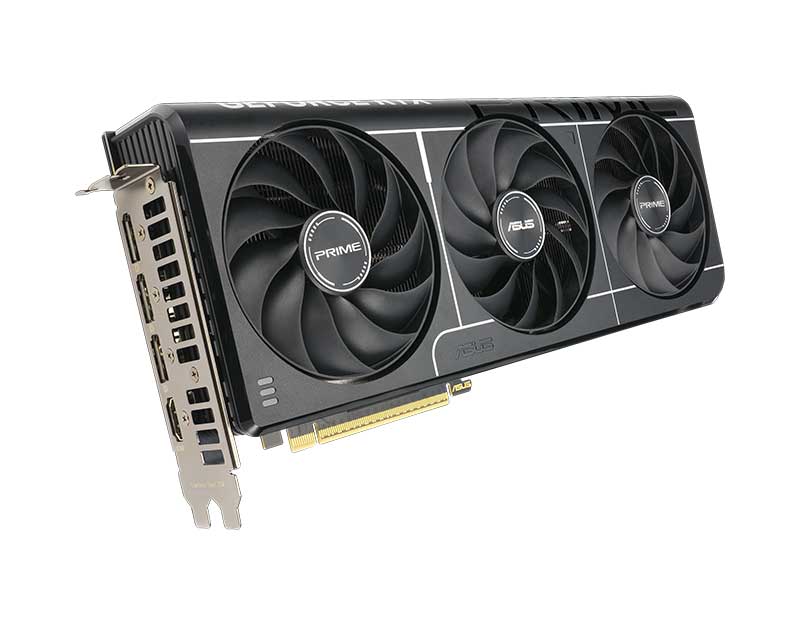

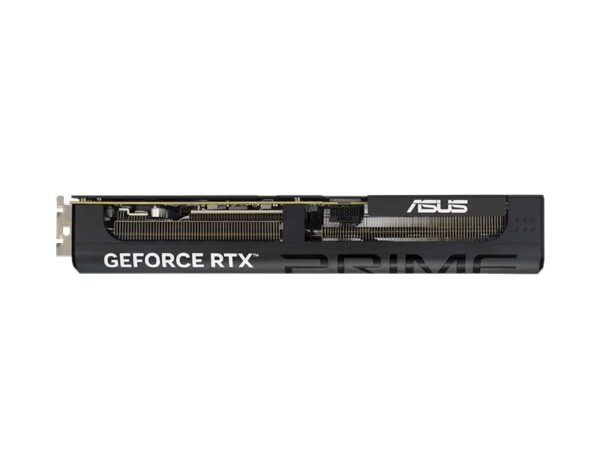

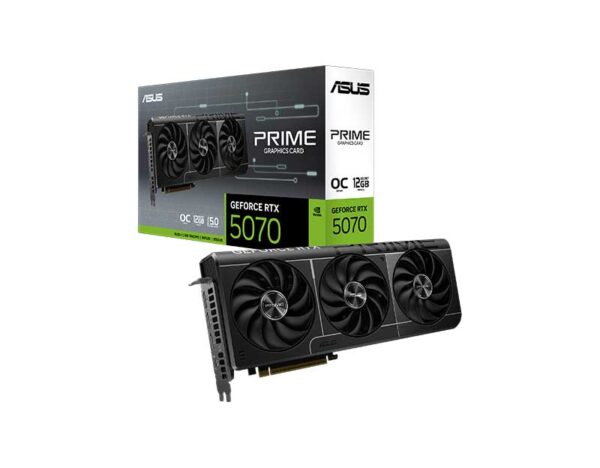

PRIME GPU GeForce RTX™ 5070
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Specification
- Model : PRIME-RTX5070-O12G
- Graphic Engine : NVIDIA® GeForce RTX™ 5070
- AI Performance : 1005 TOPs
- Bus Standard : PCI Express 5.0
- OpenGL : OpenGL®4.6
- Video Memory : 12GB GDDR7
- Engine Clock :
* OC mode: 2587MHz
* Default mode: 2557MHz (Boost Clock) - CUDA Core : 6144
- Memory Speed : 28 Gbps
- Memory Interface : 192-bit
- Resolution : Digital Max Resolution 7680 x 4320
- Interface :
* Yes x 1 (Native HDMI 2.1b)
* Yes x 3 (Native DisplayPort 2.1b)
* HDCP Support Yes (2.3) - Maximum Display Support : 4
- NVlink/ Crossfire Support : No
- Accessories :
* 1 x Speedsetup Manual
* 1 x ASUS Velcro Hook & Loop
* 1 x Thank You Card
* 1 x Adapter Cable (1 to 2) - Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
- Dimensions :
* 304 x 126 x 50 mm
* 12 x 5 x 2 inch - Recommended PSU : 750W
- Power Connectors : 1 x 16-pin
- Slot : 2.5 Slot
- SFF Ready : Compatible
- Note :
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
Overview
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
-
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
-
New Streaming Multiprocessors
Optimized for neural shaders
-
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
-
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
-
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
-
True-to-Life Graphics
Full ray tracing with neural rendering
-
Digital Humans and AI Assistants
NVIDIA ACE
-
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
-
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
-
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
-
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design

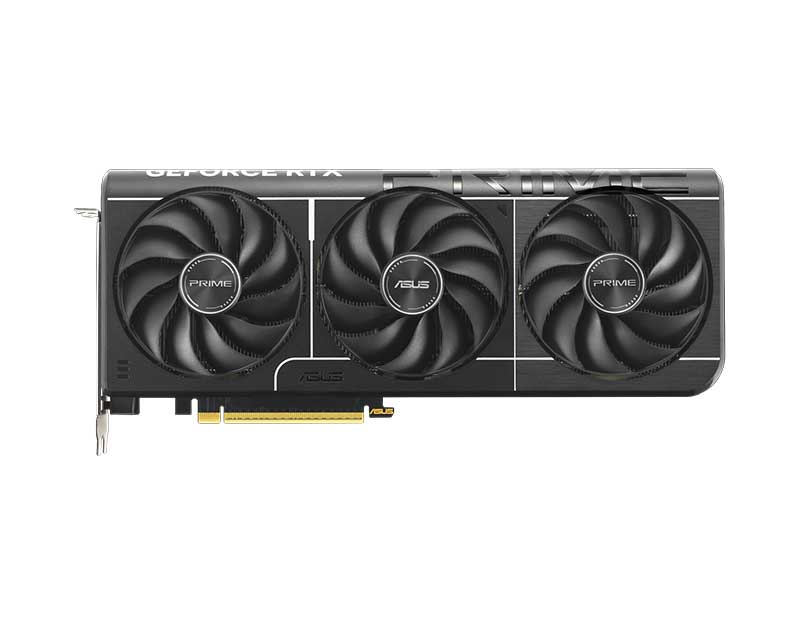

The Prime RTX 5070 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50 Celsius, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55 C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

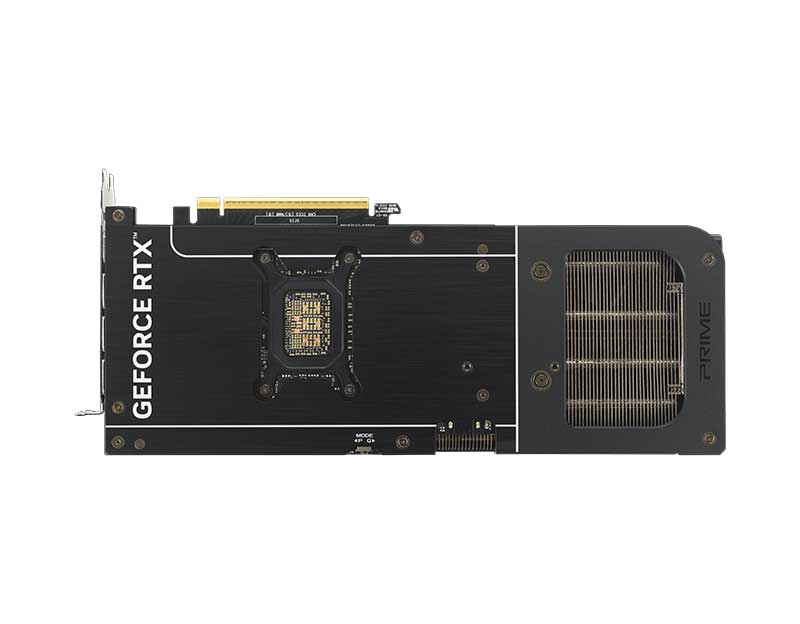

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
-
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
-
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Unmatched Reliability

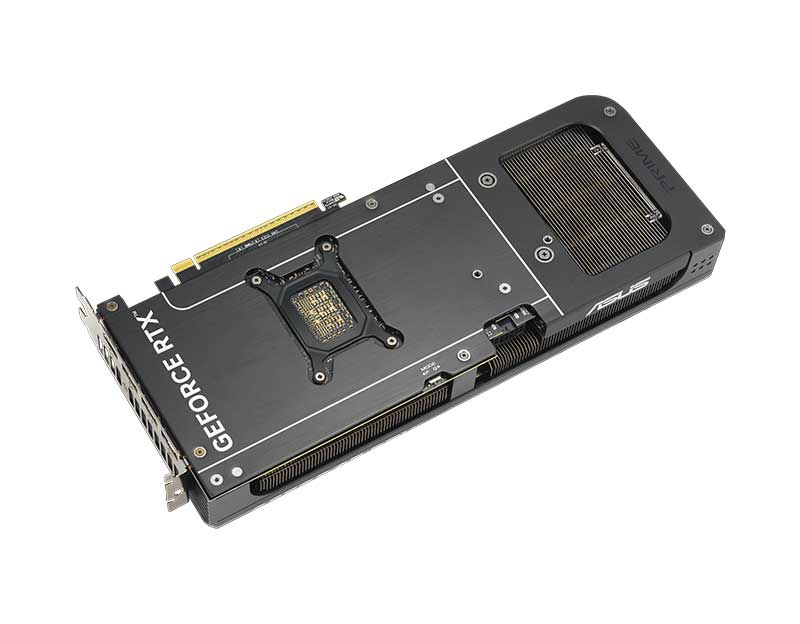

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

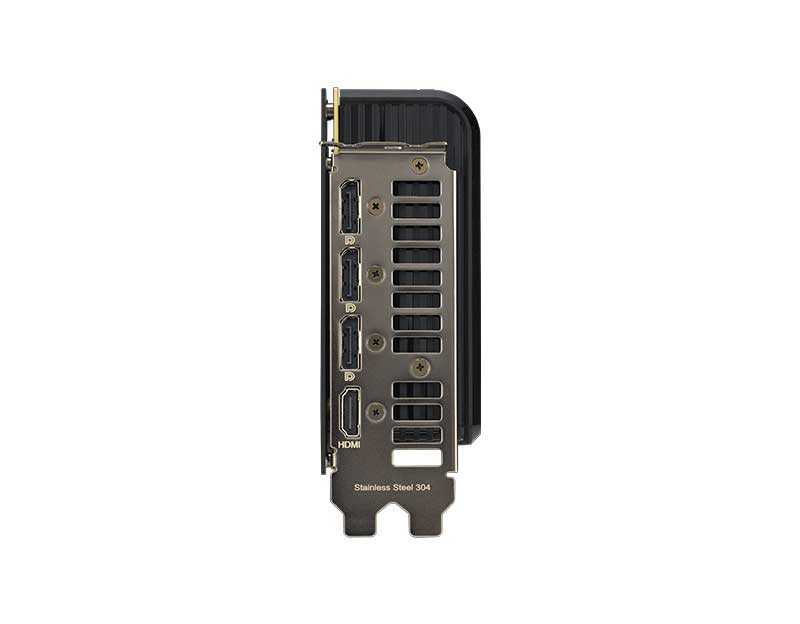

Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Engineering
-
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
-
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Best PSU for the GeForce RTX 50 Series
Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.
Software
RTX. It’s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
Full Ray Tracing with Neural Rendering
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
NVIDIA Reflex 2
Compete at Warp Speed
Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.
RTX AI PCs
NVIDIA Powers the World’s AI. And Yours.
Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
NVIDIA BroadcastYour AI-Powered Home Studio
Take your livestreams, voice chats, and video calls to the next level with AI-enhanced voice and video. Remove distracting background noise, customize your background, and more at the touch of a button.
RTX VideoUpgrade Your Video Viewing
RTX Video Super Resolution and HDR uses AI to transform your videos in Chrome, Edge, or Firefox—automatically sharpening details and wiping out compression artifacts. Enjoy stunning clarity in up to 4K.
RTX RemixRemaster The Classics
RTX Remix allows modders to easily capture game assets, enhance materials with AI tools, and create stunning RTX remasters with ray tracing and DLSS.
Video EditingSpeed Meets Creativity
Harness the power of the ninth-gen NVIDIA Encoder (NVENC) for blazing-fast video exports and AI-driven effects in DaVinci Resolve, Adobe Premiere Pro, and more.
Additional Features and Benefits
Game Ready and Studio Drivers
GeForce Game Ready and Studio Drivers deliver the best experience for your favorite games. They’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
NVIDIA App
The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimize games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.
NVIDIA G-SYNC
NVIDIA G-SYNC® is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.
Virtual Reality
The highest-performance graphics deliver the smoothest, most immersive VR experiences.
