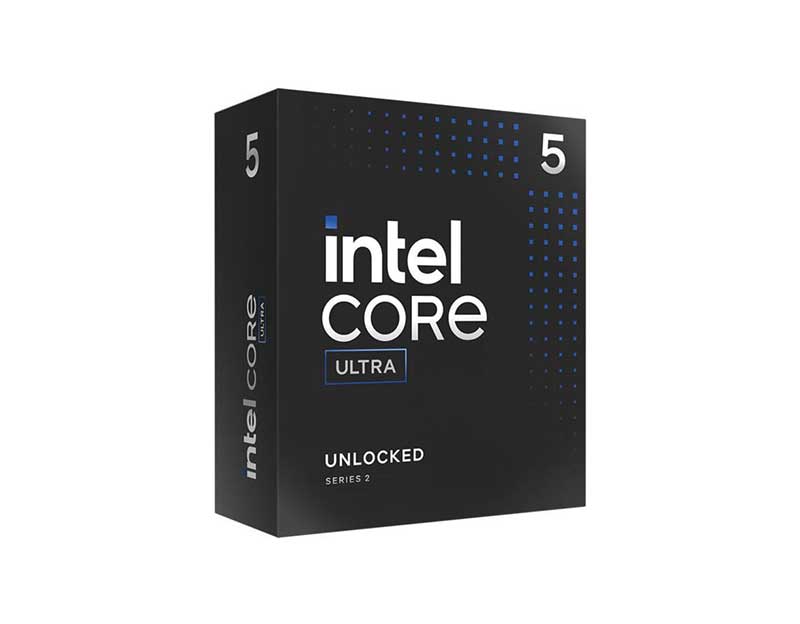

Intel® Core™ Ultra 5 processor 245KF (24M Cache, up to 5.20 GHz) FCLGA18W, Boxed, without graphics (BX80768245KF)

Specification

—————————————————

*Essentials

• Product Collection : Intel® Core™ Ultra Processors (Series 2)
• Code Name : Products formerly Arrow Lake
• Vertical Segment : Desktop
• Processor Number  : 245KF
• Overall Peak TOPS (Int8) : 22

*CPU Specifications

• Total Cores : 14
• # of Performance-cores : 6
• # of Efficient-cores : 8
• Total Threads  : 14
• Max Turbo Frequency : 5.2 GHz
• Performance-core Max Turbo Frequency : 5.2 GHz
• Efficient-core Max Turbo Frequency  : 4.6 GHz
• Performance-core Base Frequency : 4.2 GHz
• Efficient-core Base Frequency : 3.6 GHz
• Cache : 24 MB Intel® Smart Cache
• Total L2 Cache : 26 MB
• Processor Base Power : 125 W
• Maximum Turbo Power : 159 W
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
• AI Software Frameworks Supported by CPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography : TSMC N3B

*Supplemental Information

• Marketing Status : Launched
• Launch Date : Q4’24
• Embedded Options Available : No
• Use Conditions : PC/Client/Tablet
• Datasheet : View now

*Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB
• Memory Types : Up to DDR5 6400 MT/s
• Maximum Memory Speed : 6400 MHz
• Max # of Memory Channels : 2

*NPU Specifications

• NPU Name : Intel® AI Boost
• NPU Peak TOPS (Int8) : 13
• Sparsity Support : Yes
• Windows Studio Effects Support : Yes
• AI Software Frameworks Supported by NPU : OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

*Expansion Options

• Direct Media Interface (DMI) Revision : 4
• Max # of DMI Lanes : 8
• Intel® Thunderbolt™ 4 : Yes
• Scalability : 1S Only
• PCI Express Revision : 5.0 and 4.0
• PCI Express Configurations : Up to 1×16+2×4, 2×8+2×4,
  1×8+4×4
• Max # of PCI Express Lanes : 24

*Package Specifications

• Sockets Supported : FCLGA1851
• Thermal Solution Specification : PCG 2020A
• Max Operating Temperature : 105 °C

*Advanced Technologies

• Intel® Volume Management Device (VMD) : Yes
• Intel® Gaussian & Neural Accelerator : 3.5
• Intel® Thread Director : Yes
• Intel® Speed Shift Technology : Yes
• Intel® Turbo Boost Technology : 2.0
• Intel® 64 : Yes
• Instruction Set : 64-bit
• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes

*Security & Reliability

• Intel® Standard Manageability (ISM) : Yes
• Intel® Control-Flow Enforcement Technology : Yes
• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
• Intel® OS Guard : Yes
• Intel® Boot Guard  : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
