Up to 200% Power Excursion

Increased tolerance to high power surges, for compatible PSU platforms. PSUs with 450W and above, up to 200% power level for 100μs at 10% duty cycle

Small Size and Big Power

The new HYDRO G Pro series PSUs are improved from the concept of the first HYDRO G series. By developing the best features of the HYDRO G series and taking them to a higher level. With a smaller size design, HYDRO G Pro can increase performance with greater output, giving you super work performance.

Compliant with IEC/EN 62368 Standard

FSP Group companies feature the latest in green power technology, and provide a full range of additional safety certifications to keep design concepts ahead of the curve. FSP has made changes to most of its products, in order to comply with IEC/EN 62368 standards to meet the needs of the current gaming market.

80 Plus® Gold Certification

The Hydro G Pro series PSUs are 80 PLUS® Gold certified products that guarantee operating efficiency of up to 90% at 50% load which will help you save on electricity costs.

Eco Switch and Fan with Quiet Sound

The use of the Eco Button will make the PSU operate with lower power consumption and less noise. The fan in the PSU will not operate if the usage is below 30%.

Compatible with Latest PC Technology

This PSU can be used for various latest model CPU platforms. PSU with Intel ATX12V V2.52 technology design that can be used up to the peak at 12V power. Supports the latest Intel/AMD platforms and provides full power flow to your PC system.

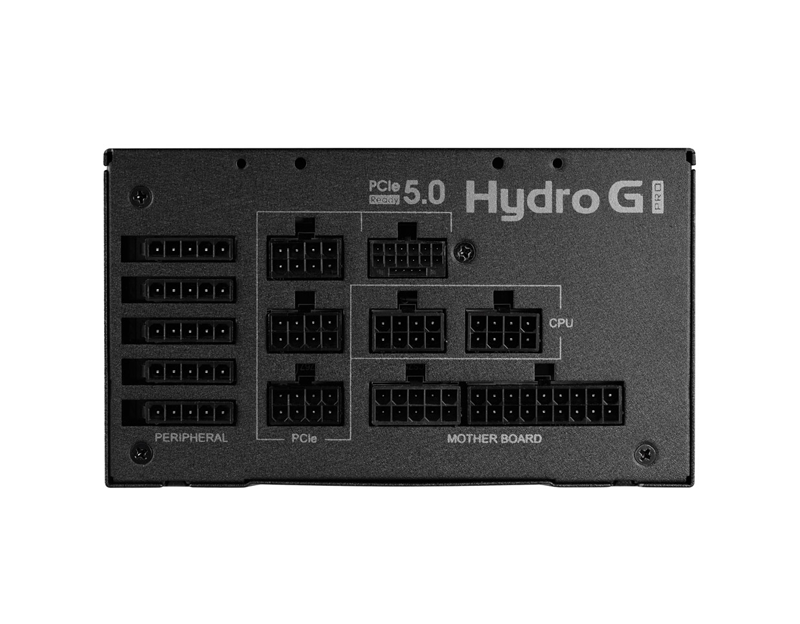

Multiple Connector Options

The ATX 12V CPU power connector is capable of supporting CPUs with sufficient wattage and the latest motherboard, the Z390. HYDRO G PRO series PSUs are available with various options from 650W to 1000W. Packing multiple power connectors more than a regular PSU, it provides stable output power and allows you to update your case with more amenities.

Modular design for quick and easy installation

The modular design simplifies installation and allows you to use only the cables you need. Makes assembling a computer neater and cleaner.

Off-Wet Technology

Anti-Moisture, Dust and Stain Technology.

This is a new technology offered by the Hydro G Pro series PSUs. The inside of the PSU is coated with a protective coating that can work safely in challenging environments. This technology works perfectly 95% of the time.

LLC Half Bridge Topology with DC-DC Module Design

The new HYDRO G Pro series PSUs have very strict voltage regulation to make the output power voltage below +/-1%. When the load changes during use, the system will automatically seek the highest efficiency with a stable voltage.

10 Year Warranty

FSP Company is committed to producing high quality and reliable PSUs. The Hydro G Pro series PSUs are backed by a 10-year warranty on replacement parts.

Performance

AC/DC

AC Input	100-240Vac~ 12-6A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	83.33A	0.3A	2.5A
Max Combined Power	120W		1000W	3.6W	12.5W
Total Power	1000W

Cables


	ATX 20+4	4+4 PIN	PCIe 12+4	PCIe 6+2	SATA	Molex (PERIPHERAL)	Floppy
Connectors	1	2	1	6	14	5	1

SPECIFICATIONS

Model	HG2-1000,Gen5
Rated Output Power	1000W
Form Factor	ATX
80 PLUS Certification	Gold
Input Voltage	100-240Vac
Input Current	16-6A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	≥90% at typical load
Fan Type	FDB Fan, 120mm
Dimensions(L x W x H)	150 x 150 x 86mm
Operation Temp.	0-50℃
Protection	OCP, OVP, OPP, SCP, OTP
