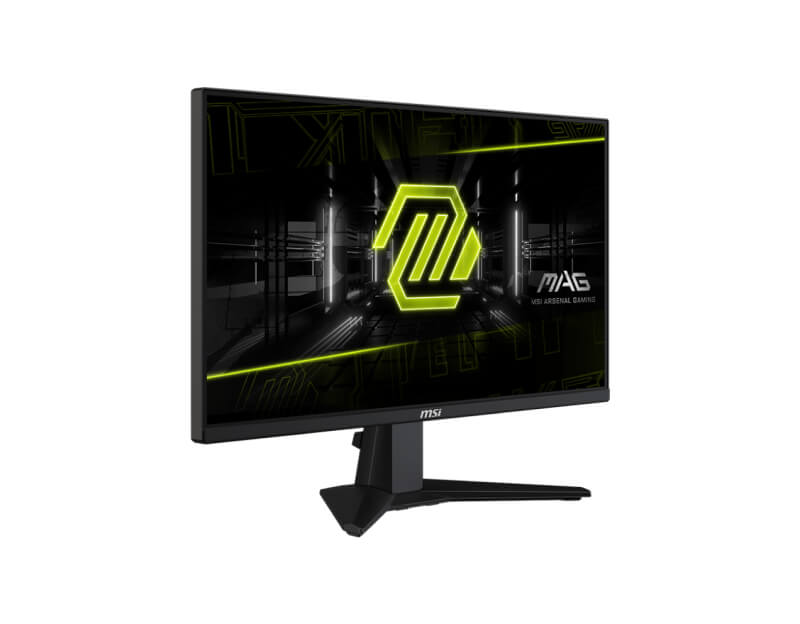

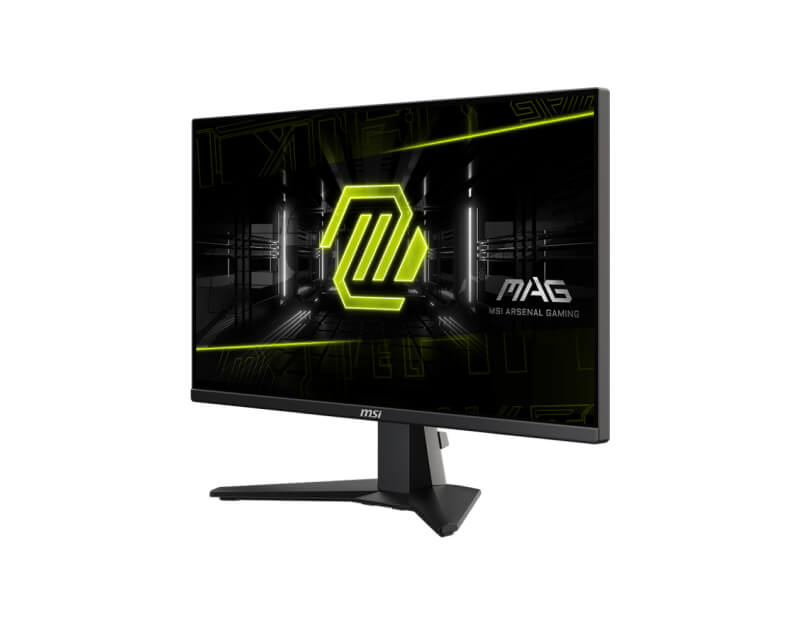

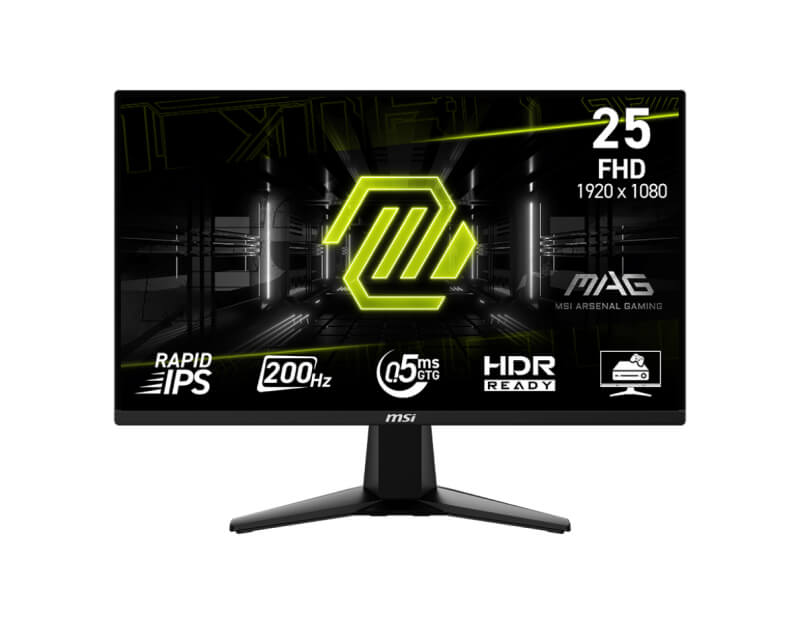

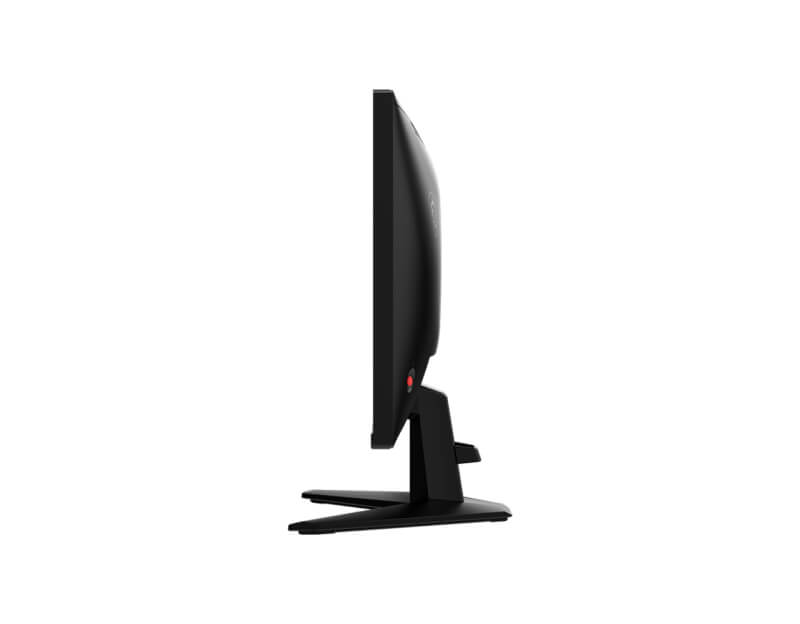

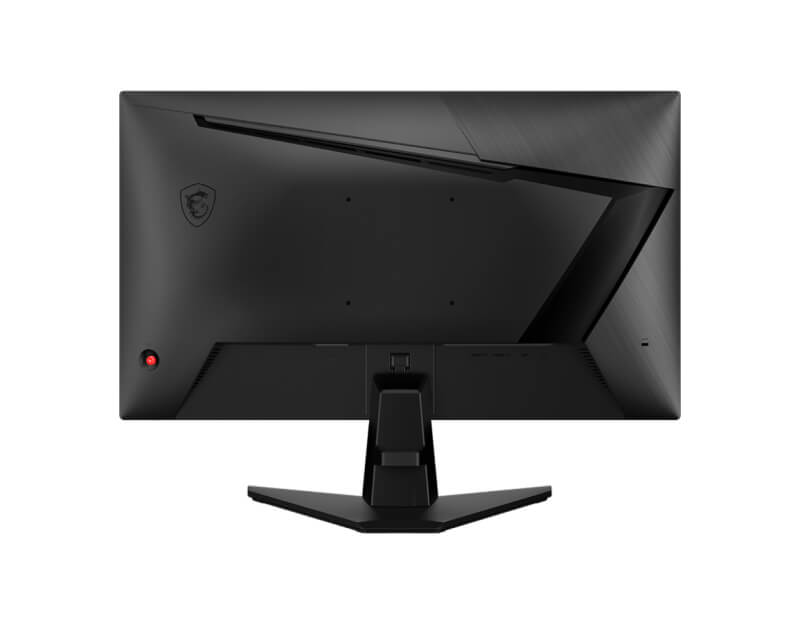

MSI MAG 255F E20 Rapid IPS Gaming Monitor

The MSI MAG 255F E20 is a 24.5-inch gaming monitor built for speed and clarity. With a 200Hz refresh rate, 0.5ms (GtG, Min.) response, and Rapid IPS panel, it delivers fluid motion and sharp visuals ideal for competitive FPS, racing, and esports titles. Equipped with HDR Ready support, AI Vision enhancements, and AMD FreeSync™ Premium, this monitor ensures vivid, tear-free gameplay for both PC and console gamers.

Specifications

• Panel Size: 24.5”
• Active Display Area: 543.744(H) x 302.616(V) mm
• Curvature: Flat
• Panel Type: Rapid IPS
• Resolution: 1920 x 1080 (FHD)
• Pixel Pitch: 0.2832(H) x 0.2802(V) mm
• Aspect Ratio: 16:9
• Brightness: 300 nits (SDR)
• Contrast Ratio: 1000:1
• DCR: 100000000:1
• Signal Frequency: 52.8~220 KHz(H) / 48~200 Hz(V)
• Activated Range: 48~200Hz
• Refresh Rate: 200Hz
• Response Time: 0.5ms (GtG, Min.)
• Dynamic Refresh Rate Tech: AMD FreeSync™ Premium
• HDR Support: HDR Ready
• Ports:
  • 2x HDMI™ 2.0b (FHD@200Hz)
  • 1x DisplayPort 1.2a (HBR2)
  • 1x Headphone-out
• Viewing Angle: 178° (H) / 178° (V)
• Color Gamut (CIE1976): Adobe RGB 83%, DCI-P3 79%, sRGB 100%
• Surface: Anti-glare
• Display Colors: 1.07B, 10-bit (8-bit + FRC)
• Power Type: Internal Power Board
• Power Input: 100~240V, 50/60Hz
• Adjustments: Tilt -5° ~ 20°
• Kensington Lock: Yes
• VESA Mount: 100 x 100 mm
• Dimensions with Stand: 557.1 x 220.1 x 418.5 mm
• Dimensions without Stand: 557.1 x 66.4 x 326.9 mm
• Weight (NW / GW): 3.24 kg / 5.13 kg
• Carton Dimensions: 630 x 125 x 411 mm
• Accessories: 1x HDMI™ Cable (2.0), 1x Power Cord (C13), 1x Quick Guide
• Max Res/Refresh:
  • HDMI™: 1920 x 1080 up to 200Hz
  • DisplayPort: 1920 x 1080 up to 200Hz
• Support: HDMI™ CEC
• Non-Support: KVM, PIP/PBP

Overview

Ultra-Fast 200Hz with 0.5ms Response

Equipped with a 200Hz refresh rate and rapid 0.5ms response, the MSI MAG 255F E20 ensures crisp visuals during fast-paced games like shooters and racing simulators. Every frame renders smoothly for maximum competitive advantage.

• 200Hz high refresh rate
• 0.5ms (GtG, Min.) response
• Perfect for FPS and esports

Eye Care Technology

With Anti-Flicker and Less Blue Light features, you can game longer without discomfort. These enhancements reduce flicker and limit harmful blue light exposure for safer viewing.

• Reduced eye strain
• Comfortable long-session gaming
• Safer visual experience

AI Vision Enhancements

The built-in AI Vision mode brightens dark scenes and saturates colors, ensuring that critical details are never lost in shadow-heavy environments.

• Reveals hidden details
• Boosts brightness and color
• Improves visual clarity

Console Mode Support

Enjoy plug-and-play convenience with MSI Console Mode. HDMI™ CEC integration allows controllers to wake the screen, while VRR ensures tear-free gameplay on supported consoles.

• Compatible with PlayStation and Switch
• HDMI™ CEC control integration
• Variable Refresh Rate support

HDR Ready — Vivid and Realistic

With HDR Ready support, the MAG 255F E20 enhances contrast and color for lifelike images. Gaming and multimedia become more immersive with richer tones and improved detail reproduction.

• Improved contrast and shadows
• Wide color coverage
• Lifelike detail reproduction

AMD FreeSync™ Premium

Experience smooth and stutter-free performance with FreeSync Premium. By syncing GPU and display, it eliminates screen tearing even at high refresh rates.

• Removes tearing and stutter
• Ensures smooth gameplay
• Optimized for high FPS gaming
