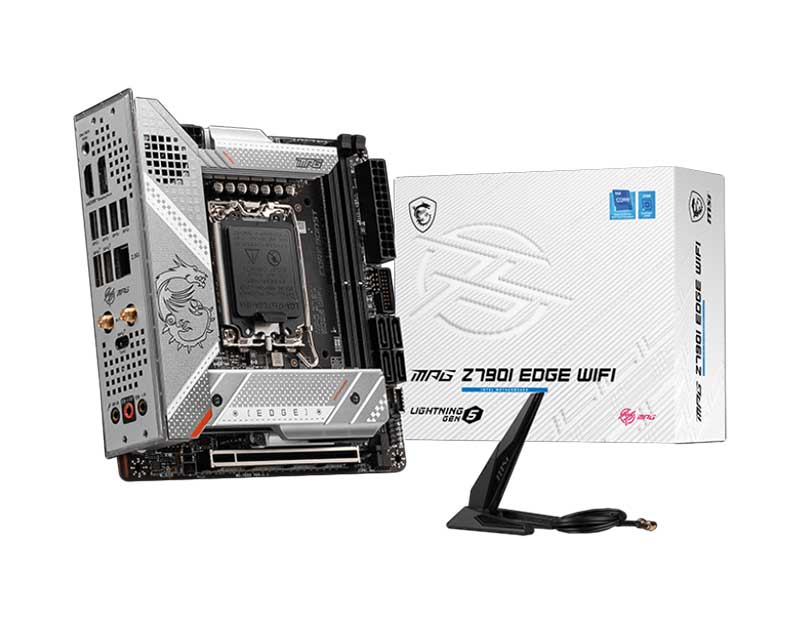

MSI MPG Z790I EDGE WIFI

MPG Z790I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Specification

• Chipset : INTEL Z790
• CPU :
  – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
  – LGA 1700
• Memory :
  – 2x DDR5, Maximum Memory Capacity 128GB
  – Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  – Max. overclocking frequency:
  • 1DPC 1R Max speed up to 8000+ MHz
  • 1DPC 2R Max speed up to 7200+ MHz

  – Supports Intel^® XMP3.0 OC
  – Supports Dual-Controller Dual-Channel mode
  – Supports non-ECC, un-buffered memory

• Onboard Graphics :
  – 1x HDMI™
  – Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  – 1x DisplayPort
  – Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :
  – 1x PCI-E x16 slot
  – PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• Audio :
  – Realtek^® ALC4080 Codec
  – 7.1-Channel USB High Performance Audio
  – Supports up to 32-Bit/384 kHz playback on front panel
• Storage :
  – 1x M.2
  – M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
  – M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices
  – M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
  – 4x SATA 6G
• RAID :
  – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  – Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
• USB :
  – 2x USB 2.0 (Front)
  – 4x USB 5Gbps Type A (Rear)
  – 2x USB 5Gbps Type A (Front)
  – 2x USB 10Gbps Type A (Rear)
  – 1x USB 20Gbps Type C (Rear)
  – 1x USB 20Gbps Type C (Front)
• LAN : Intel^® 2.5Gbps LAN
• Internal IO :
  – 1x Power Connector(ATX_PWR)
  – 1x Power Connector(CPU_PWR)
  – 1x CPU Fan
  – 1x Pump Fan
  – 1x System Fan
  – 1x Front Panel (JFP)
  – 1x Chassis Intrusion (JCI)
  – 1x Front Audio (JAUD)
  – 1x Addressable V2 RGB LED connector (JARGB_V2)
  – 1x TPM pin header(Support TPM 2.0)
  – 2x USB 2.0 ports
  – 2x USB 5Gbps Type A ports
  – 1x USB 20Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :
  – Intel^® Wi-Fi 6E
  – The Wireless module is pre-installed in the M.2 (Key-E) slot
  – Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  – Supports 802.11 a/ b/ g/ n/ ac/ ax

  – Supports Bluetooth^® 5.3**, FIPS, FISMA

  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• LED FEATURE : 4x EZ Debug LED

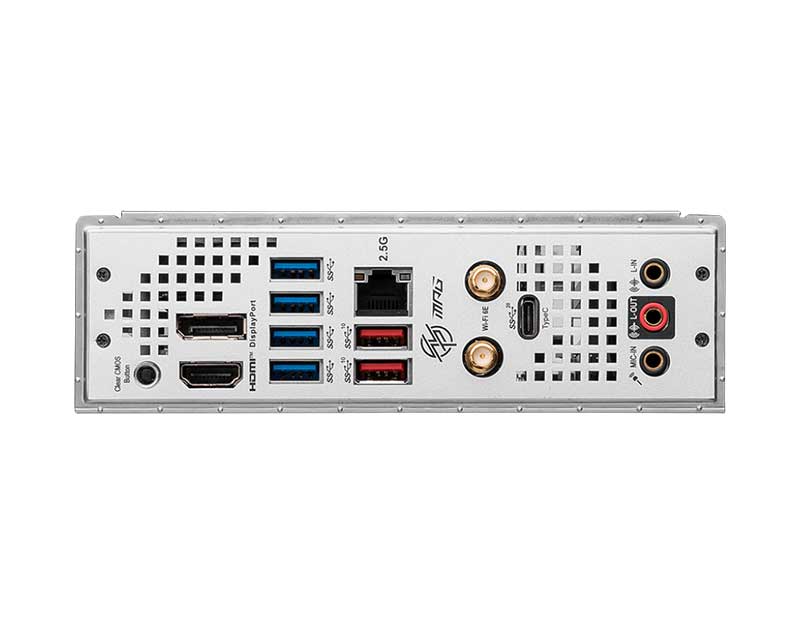

• BACK PANEL PORTS :



  1. Display Port
  2. 2.5G LAN
  3. USB 20Gbps (Type-C)
  4. Audio Connectors
  5. Clear CMOS
  6. HDMI™
  7. USB 5Gbps (Type-A)
  8. USB 10Gbps (Type-A)
  9. Wi-Fi / Bluetooth

• OPERATING SYSTEM : Support for Windows^® 11 64-bit, Windows^® 10 64-bit
• BOX CONTENT :



• PCB Info :
  – Mini-ITX
  – 170mmx170mm
