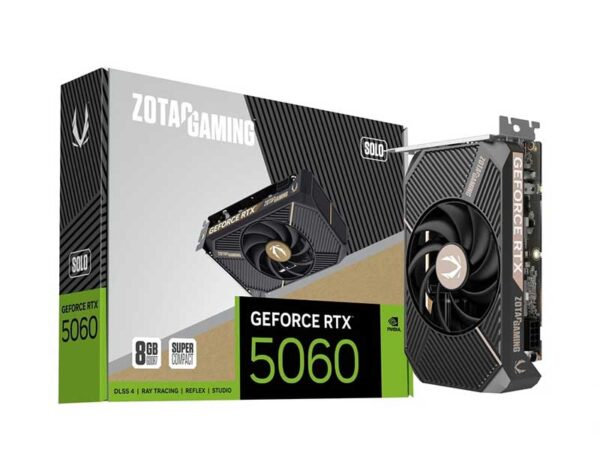

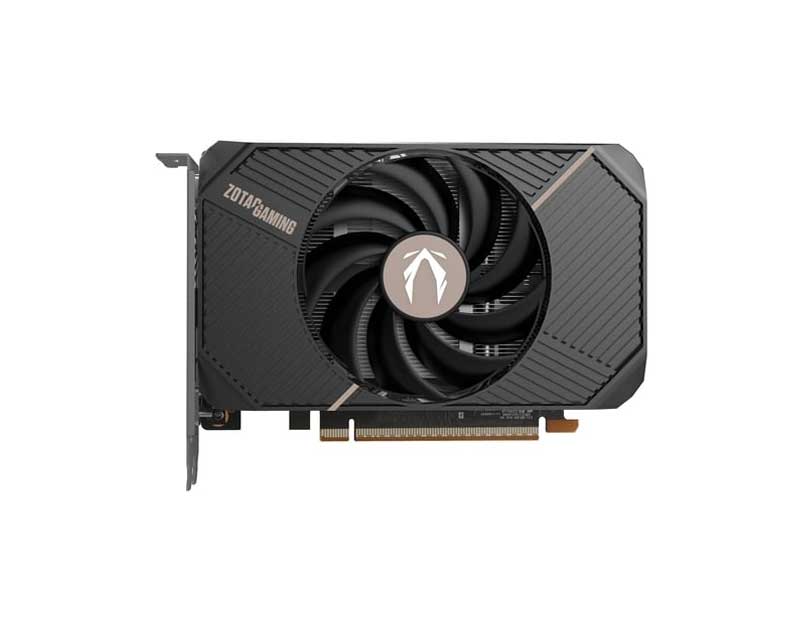

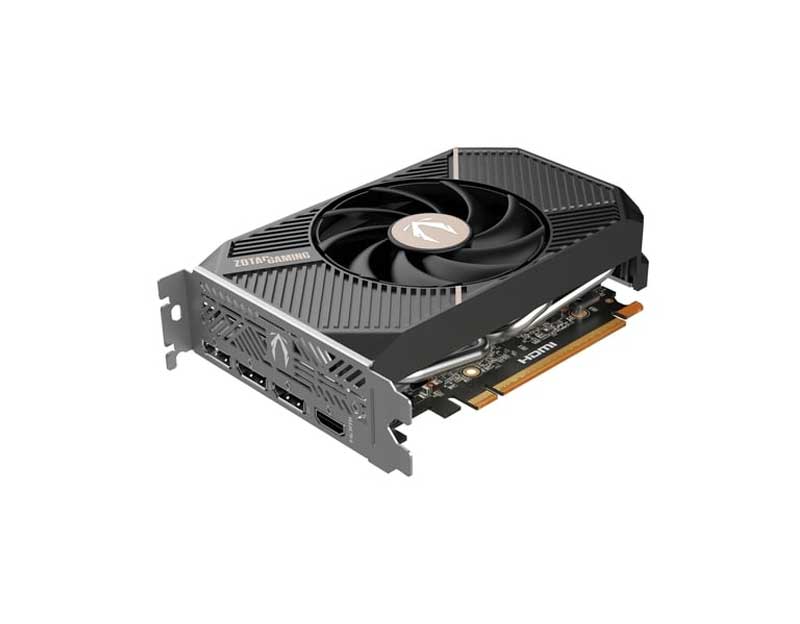

ZOTAC GAMING GeForce RTX 5060 SOLO

The ZOTAC GAMING GeForce RTX 5060 SOLO is a super-compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a single-fan, dual-dual slot footprint, the SOLO is ready to deliver big performance in a minuscule footprint.

Specification

• GPU : NVIDIA GeForce RTX 5060 GPU
• CUDA cores : 3840
• Video Memory : 8GB GDDR7
• Memory Bus : 128-bit
• Engine Clock : 2497 MHz
• Memory Clock : 28 Gbps
• PCI Express : PCI Express 5.0 x8

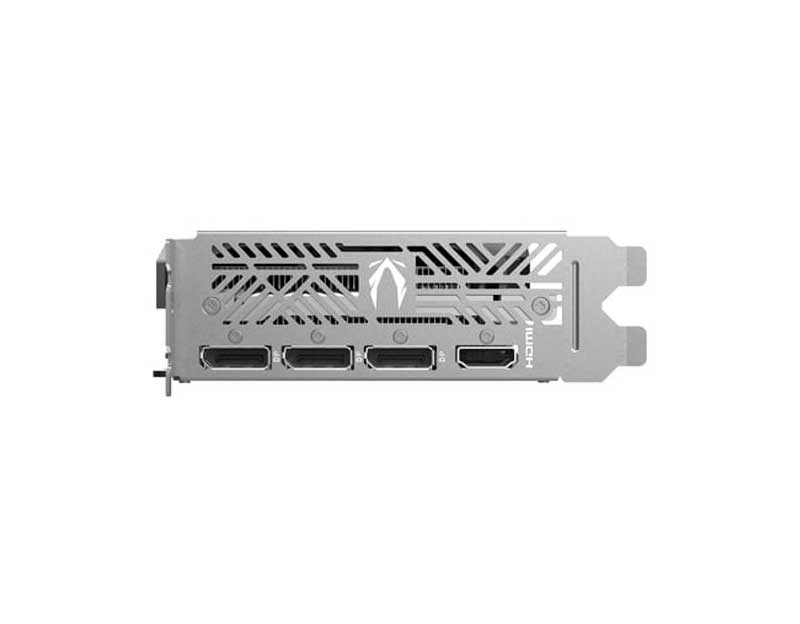

• Display Outputs :
  – 3 x DisplayPort 2.1b with UHBR20
  * (up to 4K 480Hz or 8K 165Hz with DSC)
  – 1 x HDMI® Connector
  * (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
• HDCP Support : 2.3
• Multi Display Capability : Quad Display
• Recommended Power Supply : 550W
• Power Consumption : 145W
• Power Input : 1 x 8-pin power input
• DirectX : Microsoft DirectX® 12 Ultimate
• OpenGL : 4.6
• Cooling : Air Cooled
• Slot Size : 2
• SLI : No
• Supported OS : Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
• Card Length : 164.5mm x 111.2mm x 36.4mm / 6.5″ x 4.4″ x 1.4″
• Accessories : User Manual

Overview

---

Game-Winning Responsiveness

NVIDIA Reflex 2 with Frame Warp

---

True-to-Life Graphics

Full ray tracing with neural rendering

---

Digital Humans and AI Assistants

NVIDIA ACE

---

Accelerate Your Creativity

NVIDIA Studio creator tools and technology

---

Enhance Any Video with AI

NVIDIA Broadcast and ninth-gen NVIDIA Encoder

---

Performance and Reliability

NVIDIA app with Game Ready and Studio Drivers

---

The Ultimate Gaming Display Technologies

NVIDIA G-SYNC

---

RTX. It’s On.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4

Supreme Speed.
Superior Visuals.
Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.

Full Ray Tracing with Neural Rendering

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

WIDE CASE COMPATIBILITY

The compact design of the ZOTAC GAMING GeForce RTX 5060 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and up to 8.7inch / 220.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.

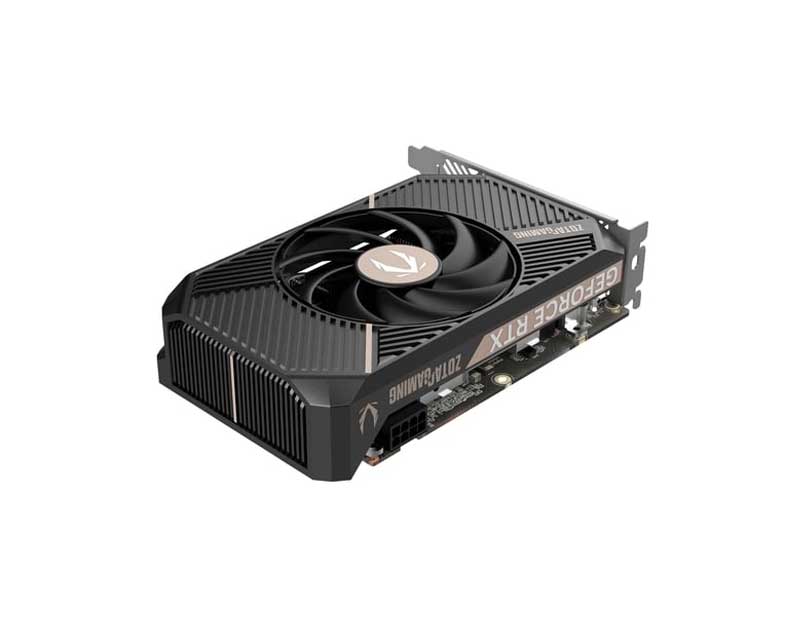

STANDARD 8-PIN POWER

A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 650W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.

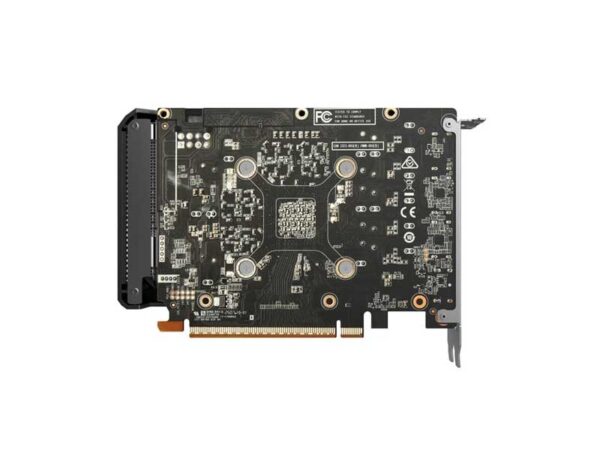

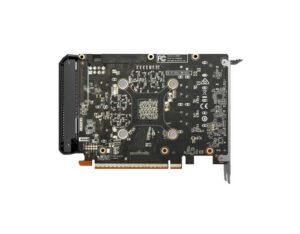

METAL BACKPLATE

The ZOTAC GAMING GeForce RTX 5060 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.

NVIDIA Reflex 2

Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.

RTX AI PCs

NVIDIA Powers the
World’s AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.

Creators

Your Creative AI-dvantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
